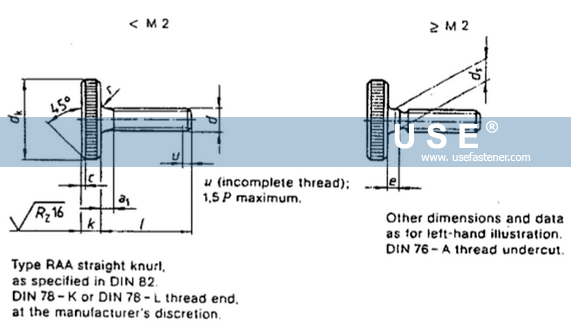

DIN 653 - Knurled Thin Thumb Screws




Thread size d
M1
M1.2
M1.4
M1.6
M2
M2.5
M3
M3.5
M4
M5
M6
M8
M10
P
0.25
0.25
0.3
0.35
0.4
0.45
0.5
0.6
0.7
0.8
1
1.25
1.5
a1
0.75
0.75
0.9
1.05
1.2
1.35
1.5
1.8
2.1
2.4
3
3.75
4.5
c
Edges chamfered
0.3
0.3
0.4
0.4
0.4
0.5
0.6
0.8
dk
Nominal size
5.5
6
7
7.5
9
11
12
14
16
20
24
30
36
max.
5.74
6.24
7.29
7.79
9.29
11.35
12.35
14.35
16.35
20.42
24.42
30.42
36.5
min.
5.26
5.76
6.71
7.21
8.71
10.65
11.65
13.65
15.65
19.58
23.58
29.58
35.5
ds
 max.=  Nominal size
-
-
-
-
2
2.5
3
3.5
4
5
6
8
10
 min.
-
-
-
-
1.86
2.36
2.86
3.32
3.82
4.82
5.82
7.78
9.78
e
-
-
-
-
1.5
2
2
2.5
3
3
4
5
6
k
 max.=  Nominal size
1.5
1.5
2
2
2
2.5
2.5
3
3.5
4
5
6
8
  min.
1.25
1.25
1.75
1.75
1.75
2.25
2.25
2.75
3.2
3.7
4.7
5.7
7.64
r
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1
1
2
2

Tags: DIN 653 Knurled Thin Thumb Screws

General Material:Stainless Steel,Nickel Alloy,Silicon Bronze,Aluminium Bronze,Brass,Naval Brass,Coppe,Copper-Nickel,Aluminum Alloy,Titanium,Alloy Steel,Such as C1008,C1018,C1022,C1035,C1045,40cr,SCM435,35crmoA,42crmoA,AISI4140SS304/A2-70,SS316/A4-80,SS310s,SS309,SS321,SS410,SS317,SS904L,17-4 PH/630,Duplex 2205,Duplex 31803,Nitronic 40,Nitronic 50,Nitronic 60,Nickel Alloy,Hastelloy C276,Inconel 600,Inconel 601,Inconel 625,Inconel 718,Inconel X750,Inconel 800H,Inconel 825,Monel 400,Monel 405,Monel K-500,MP35N,Nickel 200,Nickel 201,Waspaloy)C65500,C64200,C61400,C63000,C63200,C46200,H59,H62,H67,C46400,C11000,90/10 C70600,70/30 C71500,6061-T6,2024-T4,Ti-6Al-4V Grade 5,ASTM B348 Grade 2,ASTM B348 Grade 7,651/S63198
General Surface Finish:Blackoxide,Zinc,Dacromet 500/Dacromet 320,Non-electrolytically Deposited Zinc Flake,Hot-dip Galvanization,Phosphating,Passviation
