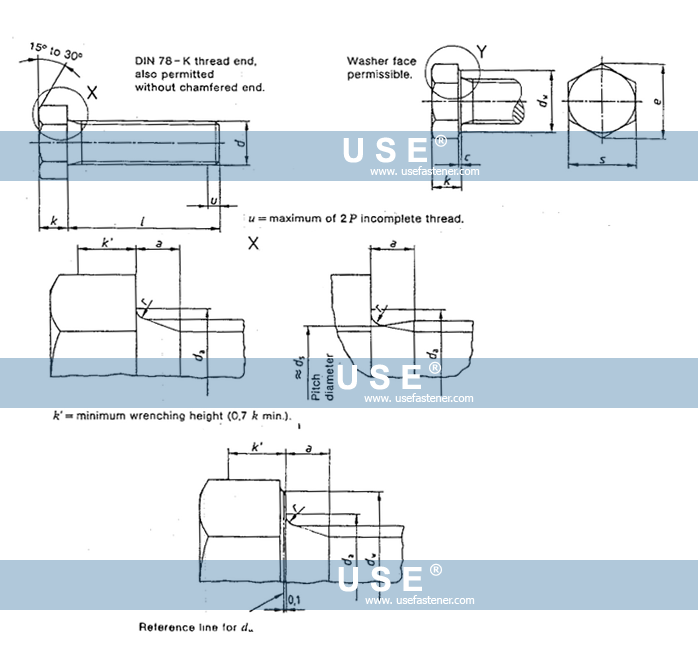

DIN 558 - Hexagon Head Bolts Grade C




Thread size
M5
M6
M8
M10
M12
M16
M20
M24
M30
M36
P
0.8
1
1.25
1.5
1.75
2
2.5
3
3.5
4
a
max
3.2
4
5
6
7
8
10
12
14
16
c
max
0.5
0.5
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
da
max
6
7.2
10.2
12.2
14.7
18.7
24.4
28.4
35.4
42.4
dw
min
6.7
8.7
11.4
15.4
17.2
22
27.7
33.2
42.7
51.1
e
min
8.63
10.89
14.2
18.72
20.88
26.17
32.95
39.55
50.85
60.79
k
Nominal size
3.5
4
5.3
6.4
7.5
10
12.5
15
18.7
22.5
min
3.12
3.62
4.922
5.95
7.05
9.25
11.6
14.1
17.65
21.45
max
3.88
4.38
5.68
6.85
7.95
10.75
13.4
15.9
19.75
23.55
k'
min
2.2
2.5
3.45
4.2
4.95
6.5
8.1
9.9
12.4
15
r
min
0.2
0.25
0.4
0.4
0.6
0.6
0.8
0.8
1
1
s
max
8
10
13
17
19
24
30
36
46
55
min
7.64
9.64
12.57
16.57
18.48
23.16
29.16
35
45
53.8
