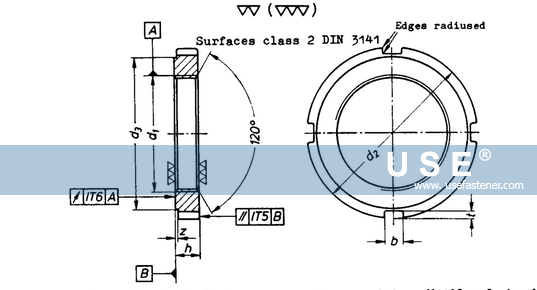

DIN 1804 - Slotted Round Nuts for hook spanner iso metric fine thread



Thread d1 4H
d2  h11
d3
b
h h14
t
z
Number of slots
M6*0.75
16
12
4
5
1.5
0.5
4
M8*1
20
16
4
5
1.5
0.5
4
M10*1
25
20
5
6
2
0.5
4
M12*1.5
28
23
5
6
2
0.5
4
M14*1.5
30
25
5
7
2
0.5
4
M16*1.5
32
27
5
7
2
0.5
4
M18*1.5
34
28
6
8
2.5
0.5
4
M20*1.5
36
30
6
8
2.5
0.5
4
M22*1.5
40
34
6
9
2.5
0.5
4
M24*1.5
42
36
6
9
2.5
0.5
4
M26*1.5
45
38
7
10
3
0.5
4
M28*1.5
50
43
7
10
3
0.5
4
M30*1.5
M32*1.5
52
45
7
11
3
0.5
4
M35*1.5
55
48
7
11
3.5
0.5
4
M38*1.5
58
50
8
11
3.5
0.5
4
M40*1.5
62
54
8
12
3.5
0.5
4
M42*1.5
M45*1.5
68
60
8
12
3.5
0.5
6
M48*1.5
75
67
8
13
3.5
0.5
6
M50*1.5
M52*1.5
80
70
10
13
4
0.5
6
M55*.15
M58*1.5
90
80
10
13
4
0.5
6
M60*1.5
M62*1.5
95
85
10
14
4
0.5
6
M65*1.5
M68*1.5
100
90
10
14
4
0.5
6
M70*1.5
M72*1.5
110
100
10
14
4
0.5
6
M75*1.5
M80*2
115
105
10
16
4
1
6
M85*2
120
110
10
16
4
1
6
M90*2
130
120
10
16
4
1
6
M95*2
135
120
12
16
5
1
6
M100*2
145
130
12
16
5
1
6
M105*2
155
140
12
16
5
1
6
M110*2
M115*2
165
150
12
18
5
1
8
M120*2
M125*2
180
165
12
18
5
1
8
M130*3
M140*3
195
180
12
18
5
1
8
M150*3
205
190
12
18
5
1
8
M160*3
220
205
12
20
5
1
8
M170*3
230
210
16
20
7
1
8
M180*3
245
225
16
20
7
1
8
M190*3
260
240
16
20
7
1
8
M200*3
270
250
16
22
7
1
8
