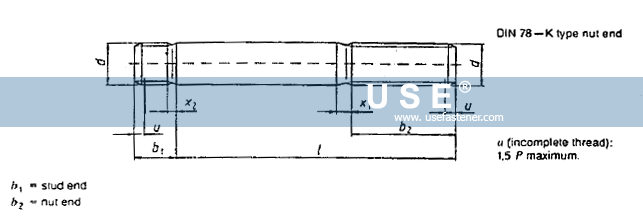

DIN-Fasteners/DIN 938 - Studs with A Length of Engagement Equal to About 1 d



d M3 M4 M5 M6 (M7) M8 M10 M12 (M14) M16 (M18)
/ / / / / M8*1 M10*1.25 M12*1.25 (M14*1.5 M16*1.5 (M18*1.5)
/ / / / / / / M12*1.5 / / /
b1 3 4 5 6 7 8 10 12 14 16 18
b2  l≤125mm 12 14 16 18 20 22 26 30 34 38 42
125mm<l≤200mm 18 20 22 24 26 28 32 36 40 44 52
200mm <l / / / / / / 45 49 53 57 61
x1 1.25 1.75 2.00 2.50 2.50 3.20 3.80 4.30 5.00 5.00 6.3
x2 0.70 0.90 1.00 1.25 1.25 1.60 1.90 2.20 2.50 2.50 3.2
l js15
d M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52)
M20*1.5 (M22*1.5) M24*2 (M27*2) M30*2 (M33*2) M36*3 (M39*3) M42*3 (M45*3) M48*3 (M52*3)
b1 20 22 24 25 30 32 35 38 42 45 48 52
b2  l≤125mm 46 50 54 60 66 72 78 84 90 96 102 110
125mm<l≤200mm 52 56 60 66 72 78 84 90 96 102 108 116
200mm <l 65 69 73 79 85 91 97 103 109 115 121 129
x1 6.30 6.30 7.50 7.5 9.0 9.0 10.0 10.0 11.0 11.0 12.5 12.5
x2 3.20 3.20 3.80 3.8 4.5 4.5 5.0 5.0 5.5 5.5 6.3 6.3
l js15

Tags: DIN 938 Studs with A Length of Engagement Equal to About 1 d

General Material:Stainless Steel,Nickel Alloy,Silicon Bronze,Aluminium Bronze,Brass,Naval Brass,Coppe,Copper-Nickel,Aluminum Alloy,Titanium,Alloy Steel,Such as C1008,C1018,C1022,C1035,C1045,40cr,SCM435,35crmoA,42crmoA,AISI4140SS304/A2-70,SS316/A4-80,SS310s,SS309,SS321,SS410,SS317,SS904L,17-4 PH/630,Duplex 2205,Duplex 31803,Nitronic 40,Nitronic 50,Nitronic 60,Nickel Alloy,Hastelloy C276,Inconel 600,Inconel 601,Inconel 625,Inconel 718,Inconel X750,Inconel 800H,Inconel 825,Monel 400,Monel 405,Monel K-500,MP35N,Nickel 200,Nickel 201,Waspaloy)C65500,C64200,C61400,C63000,C63200,C46200,H59,H62,H67,C46400,C11000,90/10 C70600,70/30 C71500,6061-T6,2024-T4,Ti-6Al-4V Grade 5,ASTM B348 Grade 2,ASTM B348 Grade 7,651/S63198
General Surface Finish:Blackoxide,Zinc,Dacromet 500/Dacromet 320,Non-electrolytically Deposited Zinc Flake,Hot-dip Galvanization,Phosphating,Passviation
