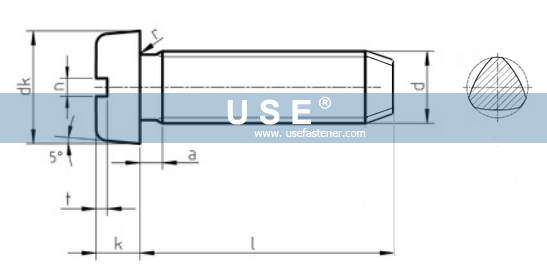

DIN 7500 A - Slotted Cheese Head Thread Rolling Forming Screws



Thread d
M2
M2.5
M3
(M3.5)
M4
M5
M6
M8
M10
P
0.4
0.45
0.5
0.6
0.7
0.8
1
1.25
1.5
a
max.
0.8
0.9
1
1.2
1.4
1.6
2
2.5
3
b
min.
25
25
25
38
38
38
38
38
38
dk
max.=nominal size
3.8
4.5
5.5
6
7
8.5
10
13
16
min.
3.62
4.32
5.32
5.82
6.78
8.28
9.78
12.73
15.73
k
max.=nominal size
1.3
1.6
2
2.4
2.6
3.3
3.9
5
6
min.
1.16
1.46
1.86
2.26
2.46
3.12
3.6
4.7
5.7
n
nominal size
0.5
0.6
0.8
1
1.2
1.2
1.6
2
2.5
max.
0.7
0.8
1
1.2
1.51
1.51
1.91
2.31
2.81
min.
0.56
0.66
0.86
1.06
1.26
1.26
1.66
2.06
2.56
r
min.
0.1
0.1
0.1
0.1
0.2
0.2
0.25
0.4
0.4
t
min.
0.6
0.7
0.85
1
1.1
1.3
1.6
2
2.4
