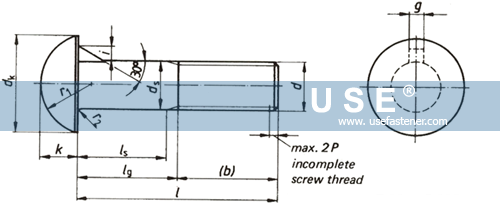

DIN 607 - Cup Head Nib Bolts




d
M6
M8
M10
M16
p
1.25
1.5
1.75
2
b
l≤125mm
22
26
30
38
125mm<l≤200mm
28
32
37
44
200mm <l
-
-
-
57
dk
max
16.55
19.65
24.65
30.65
min
15.45
18.35
23.35
29.35
ds
max
8
10
12
16
min
7.42
9.42
11.3
15.3
g
max
3
3.2
3.6
4.2
min
2.6
2.72
3.12
3.72
i
min
2.3
2.7
3.2
3.5
k
max
6.38
7.45
9.65
11.75
min
5.62
6.55
8.75
10.65
r1
　
8.9
10.5
13.3
15.8
r2
max
0.5
0.5
1
1

Tags: DIN 607 Cup Head Nib Bolts

General Material:Stainless Steel,Nickel Alloy,Silicon Bronze,Aluminium Bronze,Brass,Naval Brass,Coppe,Copper-Nickel,Aluminum Alloy,Titanium,Alloy Steel,Such as C1008,C1018,C1022,C1035,C1045,40cr,SCM435,35crmoA,42crmoA,AISI4140SS304/A2-70,SS316/A4-80,SS310s,SS309,SS321,SS410,SS317,SS904L,17-4 PH/630,Duplex 2205,Duplex 31803,Nitronic 40,Nitronic 50,Nitronic 60,Nickel Alloy,Hastelloy C276,Inconel 600,Inconel 601,Inconel 625,Inconel 718,Inconel X750,Inconel 800H,Inconel 825,Monel 400,Monel 405,Monel K-500,MP35N,Nickel 200,Nickel 201,Waspaloy)C65500,C64200,C61400,C63000,C63200,C46200,H59,H62,H67,C46400,C11000,90/10 C70600,70/30 C71500,6061-T6,2024-T4,Ti-6Al-4V Grade 5,ASTM B348 Grade 2,ASTM B348 Grade 7,651/S63198
General Surface Finish:Blackoxide,Zinc,Dacromet 500/Dacromet 320,Non-electrolytically Deposited Zinc Flake,Hot-dip Galvanization,Phosphating,Passviation
