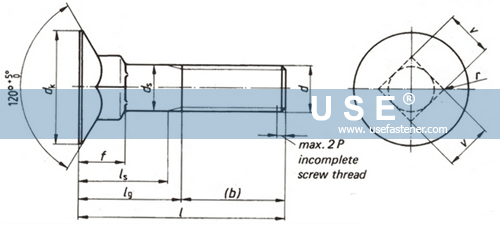

DIN 605 - Flat Countersunk Square Neck Bolts With Long Square



Screw Thread d
M6
M8
M10
P Thread Pitch
1
1.25
1.5
b
l≤125mm
18
22
26
125mm<l≤200mm
24
28
32
200mm <l
/
41
45
dk
max
16.55
20.65
24.65
min
15.45
19.35
23.35
ds
max
6
8
10
min
5.52
7.42
9.42
f
max
7.45
9.45
11.55
min
6.55
8.55
9.45
r
max
0.9
1.2
1.5
u
max
6.48
8.58
10.58
min
5.52
7.42
9.42
L
Shank Length Ls & Lg
 　

Nominal Size
min
max
Ls min
Lg max
Ls min
Lg max
Ls min
Lg max
30
28.95
31
-
12.5
-
16
-
-
35
33.75
36.25
-
12.5
-
16
-
-
40
38.75
41.25
17
22
-
16
-
18
45
43.75
46.25
22
27
16.75
23
-
18
50
48.75
51.25
27
32
21.75
28
16.5
24
55
53.5
56.5
32
37
26.75
33
21.5
29
60
58.5
61.5
37
42
31.75
38
26.5
34
65
63.5
66.5
-
-
36.75
43
31.5
39
70
68.5
71.5
-
-
41.75
48
36.5
44
80
78.5
81.5
-
-
51.75
58
46.5
54
90
88.25
91.5
-
-
-
-
56.5
64
100
98.25
10.75
-
-
-
-
66.5
74
