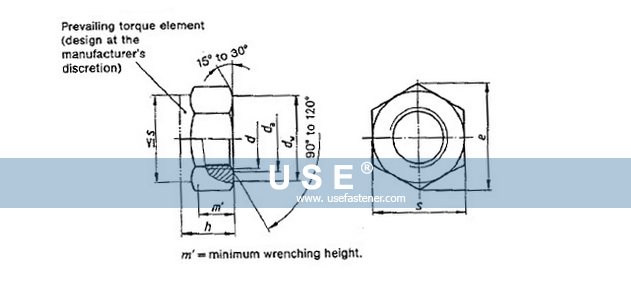

DIN 980  All Metal prevailing torque type hexagon nuts



Thread size d
M3
M4
M5
M6
M7
M8
M10
M12
M14
M16
/
/
/
/
/
M8*1
M10*1
M12*1.5
M14*1.5
M16*1.5
/
/
/
/
/
/
M10*1.25
M12*1.25
/
/
P
0.5
0.7
0.8
1
1
1.25
1.5
1.75
2
2
da
min.
3
4
5
6
7
8
10
12
14
16
max.
3.45
4.6
5.75
6.75
7.75
8.75
10.8
13
15.1
17.3
dw
min.
4.6
5.9
6.9
8.9
9.6
11.6
15.6
17.4
20.5
22.5
e   min.
6.01
7.66
8.79
11.05
12.12
14.38
18.9
21.1
24.49
26.75
h
max.=nominal size
3.7
4.2
5.1
6
7
8
10
12
14
16

min.
3.4
3.9
4.8
5.7
6.5
7.5
9
11
12
14
m'

min.
1.65
2.2
3
3.3
3.85
4.4
5.5
6.6
7.7
8.8
s
max.=nominal size
5.5
7
8
10
11
13
17
19
22
24

min.
5.32
6.78
7.78
9.78
10.73
12.73
16.73
18.67
21.67
23.67
Thread size d
M18
M20
M22
M24
M27
M30
M33
M36
M39
M18*2
M20*2
M22*2
M24*2
M27*2
M30*2
M33*2
M36*3
M39*3
M18*1.5
M20*1.5
M22*1.5
/
/
/
/
/
/
P
2.5
2.5
2.5
3
3
3.5
3.5
4
4
da
min.
18
20
22
24
27
30
33
36
39
max.
19.5
21.6
23.7
25.9
29.1
32.4
35.6
38.9
42.1
dw
min.
24.9
27.7
29.5
33.2
38
42.7
46.6
51.1
55.9
e min.
29.56
32.95
35.03
39.55
45.2
50.85
55.37
60.79
66.44
h
max.=nominal size
18
20
22
24
27
30
33
36
39
min.
16
18
20
22
25
28
31
34
37
m'
min.
9.9
11
12.2
13.2
14.8
16.5
18.2
19.8
21.5
s
max.=nominal size
27
30
32
36
41
46
50
55
60
min.
26.16
29.16
31
35
40
45
49
53.8
58.8

Tags: Hexagon Nuts DIN 980 All Metal Prevailing Torque

General Material:Stainless Steel,Nickel Alloy,Silicon Bronze,Aluminium Bronze,Brass,Naval Brass,Coppe,Copper-Nickel,Aluminum Alloy,Titanium,Alloy Steel,Such as C1008,C1018,C1022,C1035,C1045,40cr,SCM435,35crmoA,42crmoA,AISI4140SS304/A2-70,SS316/A4-80,SS310s,SS309,SS321,SS410,SS317,SS904L,17-4 PH/630,Duplex 2205,Duplex 31803,Nitronic 40,Nitronic 50,Nitronic 60,Nickel Alloy,Hastelloy C276,Inconel 600,Inconel 601,Inconel 625,Inconel 718,Inconel X750,Inconel 800H,Inconel 825,Monel 400,Monel 405,Monel K-500,MP35N,Nickel 200,Nickel 201,Waspaloy)C65500,C64200,C61400,C63000,C63200,C46200,H59,H62,H67,C46400,C11000,90/10 C70600,70/30 C71500,6061-T6,2024-T4,Ti-6Al-4V Grade 5,ASTM B348 Grade 2,ASTM B348 Grade 7,651/S63198
General Surface Finish:Blackoxide,Zinc,Dacromet 500/Dacromet 320,Non-electrolytically Deposited Zinc Flake,Hot-dip Galvanization,Phosphating,Passviation
